Connect with Confidence

Built for network dependability, low latency with zero compromise LAN cables.

Powering Light & Data

PT Tautanz Internasional Indonesia is in the manufacturing and distribution of high performance, low-latency LAN cables (CAT 5, 6, & 7) – enabling customers to truly Connect with Confidence.


Operating within Depok, West Java, we are strategically positioned to combine technology, innovation & industry experience to deliver zero-compromise connectivity solutions.

Explore Our Cables

Perbedaan Kabel UTP Cat5 dan Cat6

CAT 5E Shielded
LAN Cable

  1. Jacket
  2. Al-Foil
  3. PET Tape
  4. Insulation
  5. Conductor
  6. Drain Wire
  7. Rip Cord
Perbedaan Kabel UTP Cat5 dan Cat6

CAT 6A Shielded
LAN Cable

  1. Jacket
  2. Al-Foil
  3. PET Tape
  4. Insulation
  5. Conductor
  6. Filler
  7. Drain Wire
CAT 5E Shielded LAN Cable Jacket Al-Foil PET Tape Insulation Conductor Drain Wire Rip Cord

CAT 7 Shielded
LAN Cable

  1. Jacket
  2. Braiding
  3. Al-Foil
  4. Insulation
  5. Conductor
  6. Rip Cord

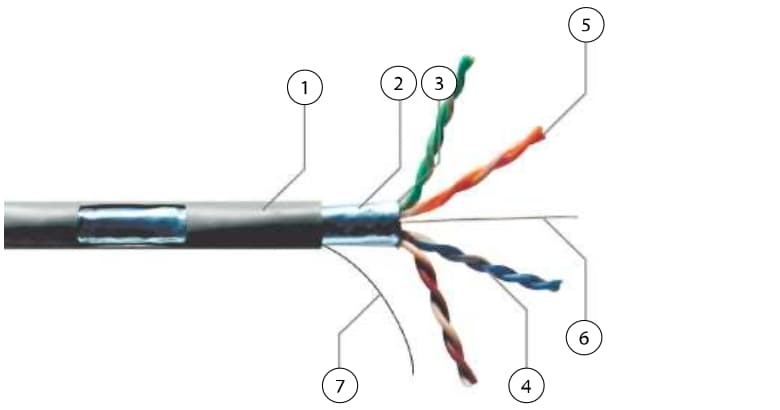

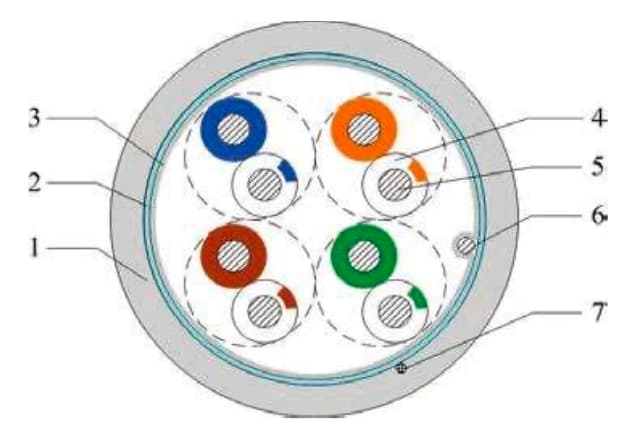

CAT 5E Shielded LAN Cable

Legends

  1. Jacket
  2. Al-Foil
  3. PET Tape
  4. Insulation
  5. Conductor
  6. Drain Wire
  7. Rip Cord

Descriptions

  • Rated Temperature : 60oC, 75oC
  • Reference Standard : YD/T 1019, IEC 61156,
    ANSI/TIA-568.2-D
  • Solid Bare Copper
  • Polyethylene Insulation
  • PVC or LSZH jacket
  • Flammability :
    CMX, CM, CMR
    IEC 60332-1, IEC 60332-3,
    DCA, ECA, FCA
  • Reelex or Reel packing

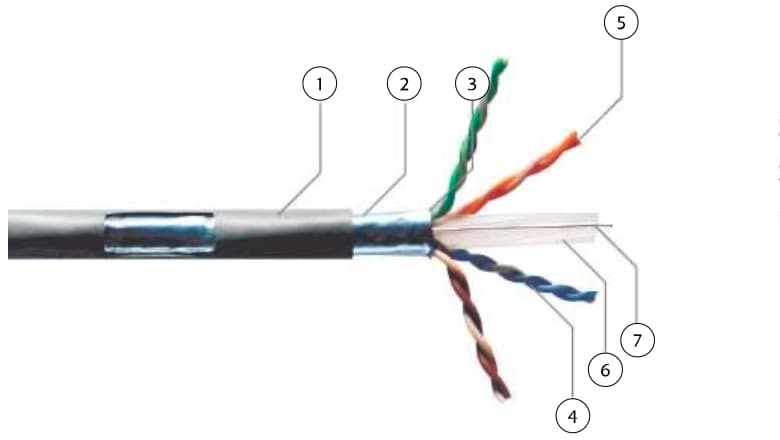

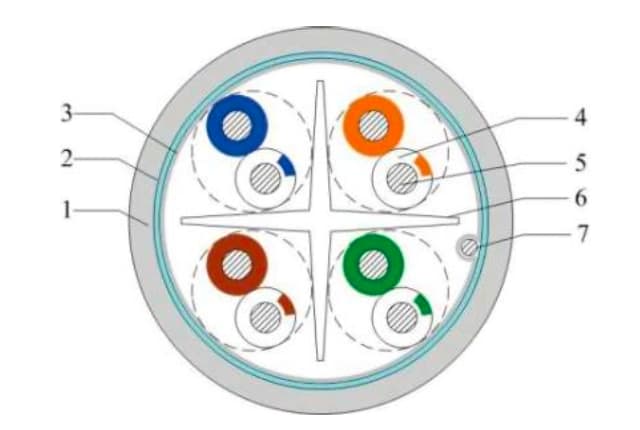

CAT 6A Shielded LAN Cable

Perbedaan Kabel UTP Cat5 dan Cat6

Legends

  1. Jacket
  2. Al-Foil
  3. PET Tape
  4. Insulation
  5. Conductor
  6. Filler
  7. Drain Wire

Descriptions

  • Rated Temperature : 60oC, 75oC
  • Reference Standard : YD/T 1019, IEC 61156
    ANSI/TIA-568.2-D
  • Solid Bare Copper
  • Polyethylene Insulation
  • PVC or LSZH jacket
  • Flammability :
    CMX, CM, CMR
    IEC 60332-1, IEC 60332-3
    DCA, ECA, FCA
  • Reel packing

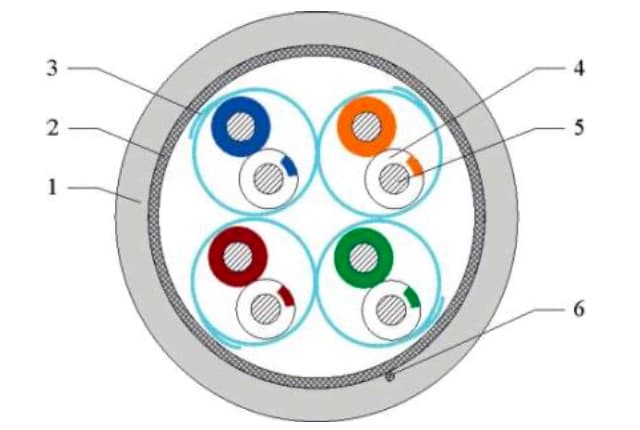

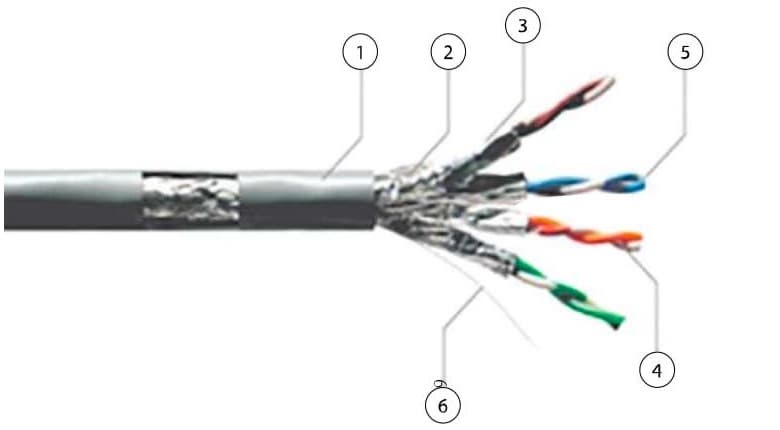

CAT 7 Shielded LAN Cable

CAT 5E Shielded LAN Cable Jacket Al-Foil PET Tape Insulation Conductor Drain Wire Rip Cord

Legends

  1. Jacket
  2. Braiding
  3. Al-Foil
  4. Insulation
  5. Conductor
  6. Rip Cord

Descriptions

  • Rated Temperature : 60oC, 75oC
  • Reference Standard : YD/T 1019, IEC 61156
  • Solid Bare Copper
  • Polyethylene Insulation
  • PVC or LSZH jacket
  • Flammability :
    CM, CMR
    IEC 60332-1, iec 60332-3
    DCA, ECA, FCA
  • Reel packing
